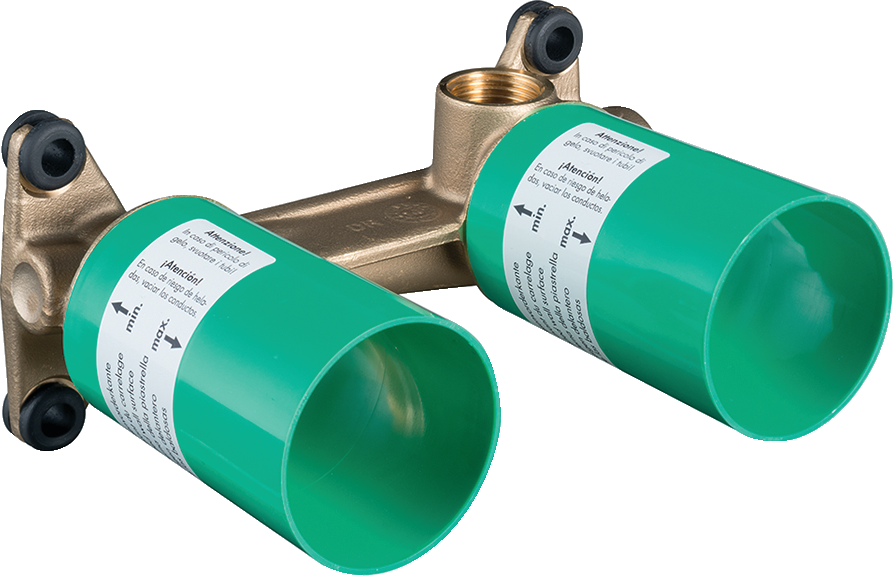

Basic set for single lever basin mixer for concealed installation wall-mounted

• variable positioning of the mixer system, can be left or right of the spout
• easy orientation due to support surfaces for the spirit level
• with building protection cover against contamination during assembly
• with dimension indication for exact determination of the installation depth
• with pre-mounted fastening lugs for mounting in drywall and solidwall
• sound-decoupled installation
• connection dimension: DN15
• minimum mounting depth: 44 mm
• maximum mounting depth: 72 mm
